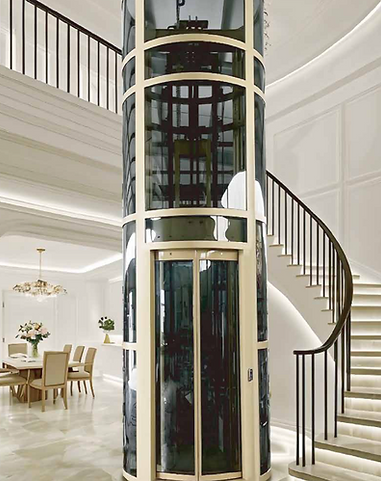

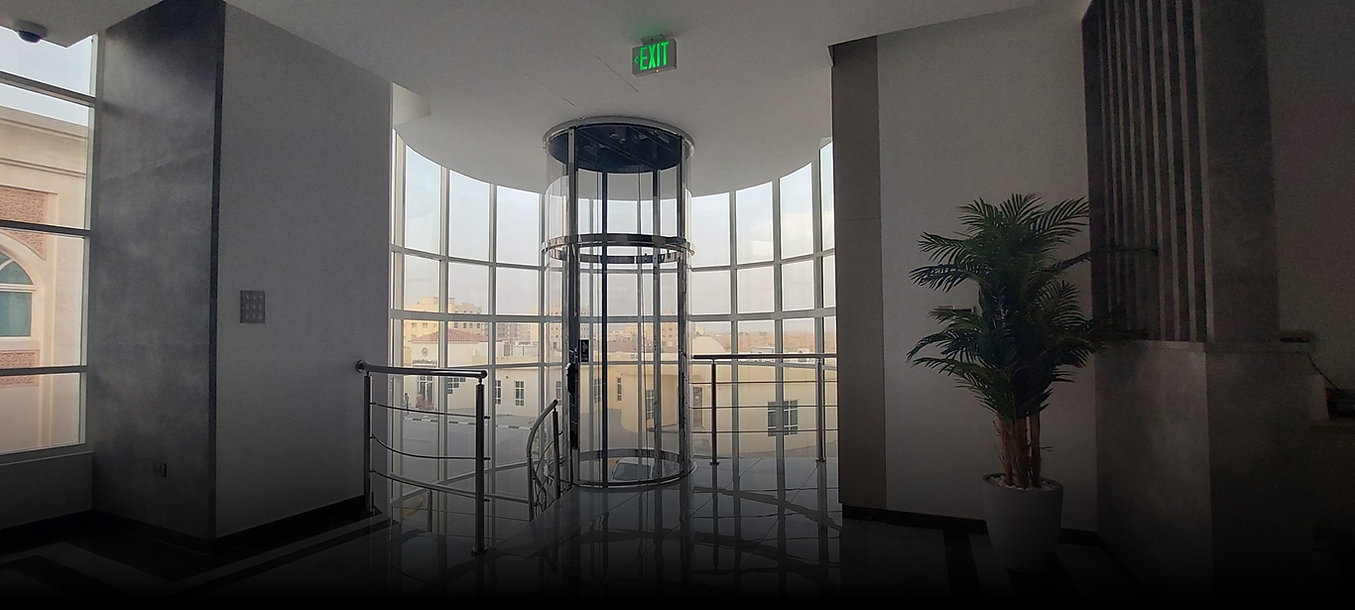

Traction circular home lifts with a polycarbonate shaft
Made from durable, flexible, and impact-resistant polycarbonate, which is 250 times stronger than glass yet lightweight.
The sleek design is perfect for installation in the center of the home or stairwell, saving space while enhancing the home's aesthetic. The circular shape adds a sense of softness and creates a more relaxing atmosphere, blending seamlessly with your home's style.
DIMENSIONS
PIT
120 MM
OVERHEAD
2800 MM
SPEED
0.15 M/S
MANUAL
OR
SEMI AUTOMATIC DOOR
Technical Specification
Generral
Maximum Travel Maximum
14 MT.
Levels
Levels
Installation Place
Installation Place
Drive Train
Winding Drum Machine with Encoder
Machine Control
Preprogrammed variable frequency drive
Rope
8 mm standard: Turkish quality, on request
Transmission
Ultra-low vibration, 3-stage, right-angle, helical-bevel drive.
Noise Level
54db ventilator OFF - 56db with ventilator ON.
Encoder
5FNC 50 H(*EC).
Internal Specifications
Cabin Ceiling
LED Spot Light - Spot Light
Cabin Operating Panel
Intercom - Alarm - Emergency Stop Button
Overload Indication
Built in on COP
Cabin Flooring
Pvc - Wood
COP
Intercom - alarm - fan - emergency stop button
Cabinet Ceiling
Etched steel or wood with spot light.
Cabin and structure cladding
4 mm solid Polycarbonate.
Door cladding
Frame 4 mm solid Polycarbonate.
